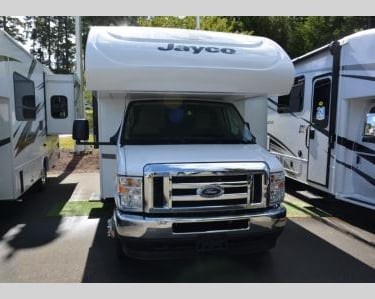

Jayco Redhawk SE 22TF

The Jayco Redhawk SE 22TF stands out as an entry-level Class C motorhome that doesn't compromise on essential features and comfort. It's designed for those looking to transition into RVing or for experienced travelers seeking a more compact yet fully equipped option.

Key Features and Highlights:

• Maneuverability: At approximately 24 feet 8 inches in length, the 22TF is highly maneuverable, making it easier to navigate tighter roads, parking lots, and smaller campsites compared to larger RVs. This makes it a great choice for exploring national parks or urban areas.

• Ford Chassis: Built on the Ford E-350 chassis, it features a 7.3L V-8 engine delivering 325 HP and 450 ft-lb of torque. This provides ample power for highway cruising and towing.

• Twin Beds with King Conversion: A notable feature of the 22TF floor plan is the rear sleeping area, which offers two twin-size beds that can be converted into a king-size bed with a filler cushion. This offers flexibility for different sleeping arrangements.

• No Slide-Out: Unlike some other Redhawk SE floor plans, the 22TF does not have a slide-out. While this means slightly less interior space when parked, it simplifies setup and allows for quick stops in areas where slides might be restrictive.

• Functional Kitchen: The kitchen includes a 2-burner cooktop with a flush cover, a convection microwave oven, and a 10 cu. ft. 12V refrigerator, providing the essentials for preparing meals on the go.

• Mid-Coach Bathroom: A full mid-coach bathroom with a shower, stainless steel sink, and foot-flush toilet offers convenience and privacy.

• Overhead Bunk: A spacious overhead bunk with a 750 lb. capacity provides additional sleeping space or a large storage area.

• Jayco's Construction: Jayco utilizes its StrongholdVBL™ lamination process for the roof, floor, and sidewalls, aiming for a lightweight yet strong construction. It also features a one-piece, seamless fiberglass front cap for durability.

• Standard Amenities: Comes equipped with a 4,000W generator, 13,500 BTU ducted A/C, 30,000 BTU auto-ignition furnace, and a 6-gallon gas/electric DSI auto-ignition water heater.

• Customer Value Package (Mandatory): This package often includes an electric patio awning, black holding tank sprayer, backup camera, and an LED HD Smart TV, enhancing the overall RV experience.

• Optional Upgrades: Common options include automatic hydraulic leveling jacks and a 200W solar panel with a dual controller and second house battery for extended off-grid capabilities.

Considerations:

• Living Space: As a compact RV without a slide-out, the main living area might feel a bit more confined compared to models with slides. The primary seating is often a dinette bench with a removable table.

• Chassis Technology: While reliable, the Ford E-350 chassis is an older platform, meaning it might lack some of the advanced safety and driver-assist technologies found in newer vehicle chassis.

• Storage: Gear garage for larger items / bicycles

Specifications

Chassis & Engine:

• Chassis: Ford® E-350

• Engine: 7.3L V-8

• Horsepower: 325 HP @ 3,750 RPM

• Torque: 450 ft-lb @ 3,750 RPM

• Transmission: 6-speed TorqShift® series automatic with overdrive

• Alternator: 210-amp

• Hitch Capacity: 5,000 lbs. with 500 lb. tongue capacity and 7-pin plug

Dimensions & Weights:

• Exterior Length (overall): Approximately 24 ft 8 in (296 inches)

• Exterior Height (with A/C): Approximately 11 ft 6 in (138 inches)

• Exterior Width: 8 ft 4 in (100 inches)

• Interior Height (main): 7 ft (84 inches)

• Gross Vehicle Weight Rating (GVWR): 12,500 lbs

• Gross Combined Weight Rating (GCWR): 18,500 lbs

• Dry Weight: Approximately 10,097 lbs (may vary)

• Sleeping Capacity: Up to 4 people

Tank Capacities:

• Fresh Water Capacity: 43 gallons

• Gray Water Capacity: 41 gallons

• Black Water Capacity: 31 gallons

• Propane Tank Capacity: 12.2 gallons (41 lbs)

• Fuel Capacity: 55 gallons

Exterior Features:

• Electric patio awning (16 ft)

• Fiberglass exterior walls with vinyl graphics

• Electric-powered entrance step

• 4,000W generator

• Solar prep

• 30-amp electrical service

• LP quick-connect hookup

• Exterior utility center

• Outside shower

• Backup camera (often part of Customer Value Package)

• Tufflex™ PVC laminated roof

• Aluminum running boards

Interior Features:

• Overhead bunk with 750 lb. capacity

• High-intensity, recessed LED ceiling lights

• Pleated blackout shades

• 13,500 BTU ducted A/C

• 30,000 BTU auto-ignition furnace

• 6 gal. gas/electric DSI auto-ignition water heater

• 10 cu. ft. 12V refrigerator

• 2-burner cooktop with flush cover

• Convection microwave oven

• Stainless steel kitchen sink

• Stainless steel bathroom sink

• Toilet with foot flush

• Twin-size beds with filler cushion convert to king-size bed

• 48 in. dinette bench with removable table

• LED HD Smart TV (often part of Customer Value Package)

• Smoke alarm, Carbon monoxide detector, Fire extinguisher

The Jayco Redhawk SE 22TF is a solid choice for those seeking a reliable, easy-to-drive Class C motorhome with essential amenities for comfortable adventures. Its compact size and flexible sleeping arrangements make it particularly appealing for couples or small families embarking on their RV journeys.
